Commuter Men

On the COMMUTER series special attention is given to safety and comfort. This 26" City Bike is the perfect bike for everyday use.

Equipment
Frame / Saddle / Stem
Frame 26 Alloy Frame
Seatpost 27.2 x 300 Steel E.D. Black
Saddle DDK D-5090
Handlebar Steel ED black 600 mm
Stem Steel E.D. Black, Quill Type
Color Black
Suspension / Brakes / Wheels
Fork Steel rigid fork
Travel -
Breakes JAK-5 Mechanical Disc Brake
Brake Leaver APSE 428D 4-finger
Tire DURO/CHAOYANG 26 x 1.75
Rim PH-XLM-01
Front Hub SF-HB25F steel, w. QR
Rear Hub SF-HB25R steel
Spokes ED Black
Drive / circuit
CRC 3811102
Headset NECO H-841 Steel 1"
Bottom Bracket Steel 68 x 120 mm
Chainwheel GS 373 Steel 48-38-28
Chain KMC Z7
Pedal FP-804 plastic
Front Derailleur Shimano FD-TZ-510-DS5
Rear Derailleur Shimano RD-TY300 7 Speed
Shifter Shimano SL-RS35 Revo Shifter
Freewheel Steel 14-28 7 Speed
Geometry

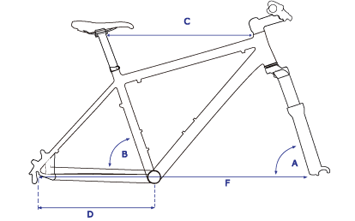

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
20" 72.0° 73° 561 435 - 1060 - - 4710898131101
Download specifications
