E-CITY Women

A perfect bike for commuting to work and for leisure trips in the outskirts of town. Its electrical power assisted system (PAS) grants most comfortable and easy riding.

Key components and features:

  • 700C 6061 Alu E-Bike trecking frame and suspension fork with hydraulic lockout
  • Ananda M60 mid-motor 36V/250W 80(Nm) speed limit 25 KM/h
  • In downtube integrated battery 522W
  • Cockpit Display Ananda D16
  • Charger: AD266, input: 100 - 240V
  • Shimano Cues RD-4020 9-Speed
  • Tektro hydraulic disc brake
  • Fully equipped with LED light, fender, carrier and kickstand
Equipment
Frame / Saddle / Stem
Frame 700C Alloy
Seatpost Alloy 30.4 x 350
Saddle Velo VL-3542
Handlebar HL Alloy 700 mm, rise 30 mm
Stem HL Alloy, Adjustable
Color Burgundy Red
Suspension / Brakes / Wheels
Fork RST Volant w/Hydraulic Lockout
Travel 60 mm
Breakes Tektro HD-M275 Hydraulic Disc
Brake Leaver Tektro HD-M275
Tire CHAOYANG E-Liner 700 x 45 mm
Rim Stars Circle Alu 700C double wall
Front Hub KT-K68F Alloy w/QR
Rear Hub KT-K68R Alloy disc hub
Spokes Stainless
Drive / circuit
CRC 3811108
Headset Neco 1 1/8" Ahead
Bottom Bracket Ananda integrated
Chainwheel Shimano CR-ET600 38T
Crank Samox EC39 170 mm
Chain KMC E-9S
Rear Derailleur Shimano Cues RD-U4020
Freewheel Shimano CS-LG300-9s
Shifter Shimano Cues SL-U4000-9R
Drive Unit / Motor Ananda M60 36V/250W 80 Nm 25 KM/h
Battery Veken integrated 36V 14Ah 522W
Charger AD266 Input: 100 - 240V
Cockpit / Display Ananda D16 _ Canbus
Geometry

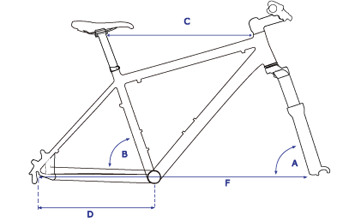

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
17" 69.0° 72.0° 620 490 - 1168 - - 4710898131491
Download specifications
