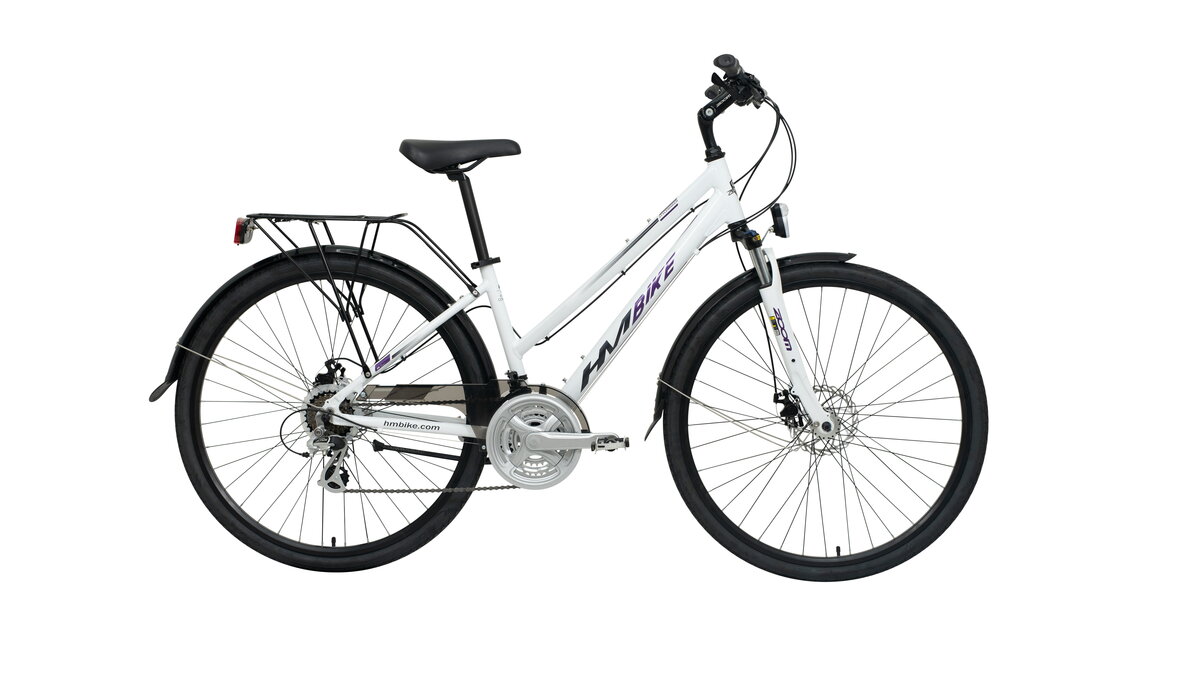

Stylemaker Lady

A perfect bike for commuting to work and for leisure trips in the outskirts of town. Sophisticated components have been chosen, with safety and comfort in mind.


Key components and features:

  • 26" 6061 Alu Trekking Bike frame and suspension fork
  • Shimano Deore/Alivio, 24 Speed
  • Tektro mechanical disc brake
  • Fully equipped with LED light, fender, carrier and kickstand
Equipment
Frame / Saddle / Stem
Frame 700C Alloy
Seatpost ZOOM Alloy 27,2 x 300
Saddle CIONLLI CL-745N
Handlebar HL MTB-152 Steel 580 mm
Stem HL MTS-C331 Alloy, Adjustable
Color White
Suspension / Brakes / Wheels
Fork HL ZOOM 141D Mechanical Lockout
Travel 45 mm
Breakes JAK-5 Mechanical Disc
Brake Leaver Shimano STEF41
Tire DURO/CHAOYANG 700 x 38
Rim PH-XLM-31 700Cx1.75
Front Hub KT-MD7F/QR Steel
Rear Hub KT-MMD7R/QR Steel
Spokes Stainless
Drive / circuit
CRC 16" 2752848 / 18" 2752847
Headset FP H803 Threaded
Bottom Bracket FP-B902 Seal Bearing
Chainwheel Prowheel Steel/Alloy 48/38/28
Chain KMC Z7
Pedal FP-906 PP Body Steel Cage
Front Derailleur Shimano FD-TX51
Rear Derailleur Shimano Altus RD-M310
Shifter Shimano STEF41
Freewheel Shimano Turney MF-TZ21 7 Speed
Geometry
A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
16" 70.0° 73.5° 566 454 - 1086 - - 4710898131088
48 cm 70.0° 73.5° 566 454 - 1087 - - 4710898131095
Download specifications
