Stylemaker Men

A perfect bike for commuting to work and for leisure trips in the outskirts of town. Sophisticated components have been chosen, with safety and comfort in mind.

Key components and features:

  • 28" 6061 Alu Trekking Bike frame and suspension fork with mech. lockout
  • Shimano Altus RD-M310 7-Speed
  • Tektro mechanical disc brake
  • Fully equipped with LED light, fender, carrier and kickstand
Equipment
Frame / Saddle / Stem
Frame 700C Alloy
Seatpost Zoom Alloy 27,2 x 350
Saddle DDK D-5090
Handlebar HL MTB-152 Steel 580 mm
Stem HL Alloy, Adjustable
Color Black
Suspension / Brakes / Wheels
Fork ZOOM 141D, Mechanical Lockout
Travel 45 mm
Breakes JAK-5 Mechanical Disc
Brake Leaver Shimano ST-EF500
Tire CHAOYANG 700 x 38
Rim PH-XLM-31 700Cx1.75
Front Hub KT-MD7F/QR Steel
Rear Hub KT-MD7R/QR Steel
Spokes Stainless
Drive / circuit
CRC 3811099
Headset FP H803 Threaded
Bottom Bracket Steel 68 x 122 mm
Chainwheel Prowheel Steel/Alloy 48/38/28
Chain KMC Z7
Pedal FP-906 PP Body Steel Cage
Front Derailleur Shimano FD-TZ510
Rear Derailleur Shimano RD-M310
Shifter Shimano ST-EF500
Freewheel Shimano Turney MF-TZ500 7- Speed
Geometry

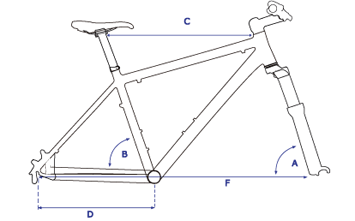

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
21" 69.0° 72.5° 620 490 - 1168 - - -
Download specifications
