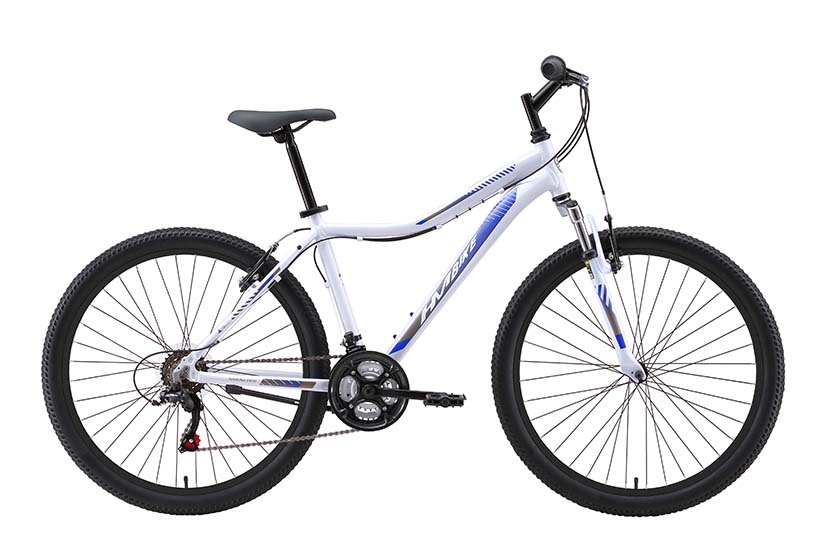

Bafana blue

BAFANA is an entry level MTB with a geometry specially designed for women. It offers comfortable riding on the road but also on offroad trails. Reliable components grant a perfect riding experience.

Equipment
Frame / Saddle / Stem
Frame 26
Seatpost 27.2 x 300 Steel E.D. Black
Saddle Cionlli 745N MTB
Handlebar Steel E.D. Black
Stem Steel E.D. Black, Quill Type
Color white-blue
Suspension / Brakes / Wheels
Fork H.L. 325E suspension fork
Travel 50 mm
Breakes Alloy V-Brake w/ Linear Spring
Brake Leaver Alloy, 428D
Tire Kenda K-877 26 x 2.1 A/V
Rim Stars Circle J20 Alloy
Front Hub SF-HB10F Steel E.D. Black w/QR
Rear Hub SF-HB10R Steel E.D. Black
Spokes ED Black
Drive / circuit
CRC 2525391
Headset Steel ED black 1
Bottom Bracket CH-46 Semi Cartridge
Chainwheel GW GS-S353 42/34/24
Chain KMC 6
Pedal Fenmin FP-818
Front Derailleur Simano FD-TZ500
Rear Derailleur Shimano RD-TZ500
Shifter Shimano SL-RS35 Revo Shifter
Freewheel Steel 14-18 6 Speed
Geometry

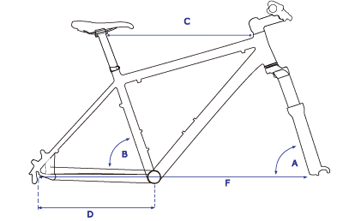

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
17" 71° 73.0° 549 425 - 1048 - - 4710898131057
Download specifications
