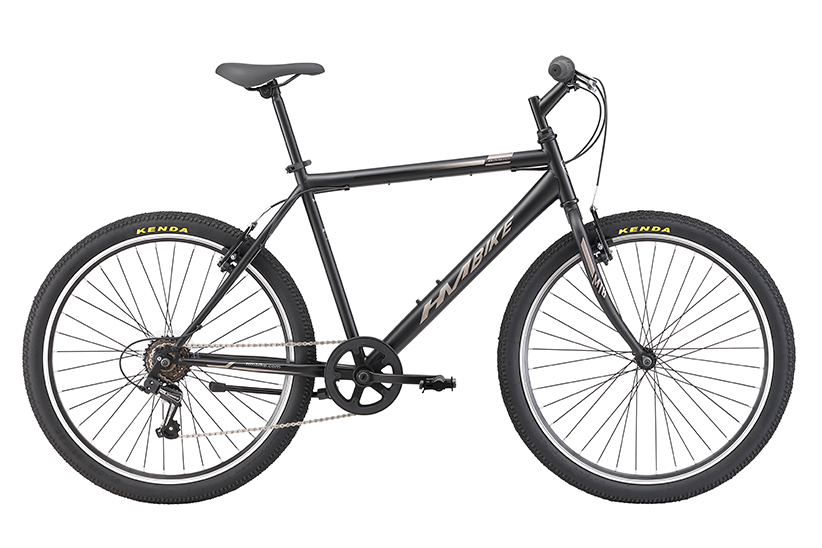

Basic

For exercise, a bike experience or as a mode of transport, the BASIC is your bike. It is a sturdy reliable off-roader with an excellent price/value ratio that fits all life-styles.

Equipment
Frame / Saddle / Stem
Frame Hi-Ten Steel
Seatpost Steel ED black 25,4 x 350
Saddle CIONLLI 6141N MTB Vinyl
Handlebar Steel E.D. Black 600 MM
Stem Steel E.D. Black
Color Black
Suspension / Brakes / Wheels
Fork Hi-Ten Steel Rigid Fork
Travel -
Breakes Logan LB-901 Alloy V-Brake
Brake Leaver Logan LL-448 DG 4-Finger Alloy
Tire CHAOYANG H5120 26 x 1,95 All Black
Rim PH-XLM-31 Alloy
Front Hub Steel ED black, flange nutted
Rear Hub Steel ED black, flange nutted
Spokes Steel ED black
Drive / circuit
CRC 7511501
Headset NECO H-841 SW 1 1/8
Bottom Bracket NECO B910 68 x 120
Chainwheel Steel 40T
Chain KMC Z6
Pedal NECO WP931, silver cage
Front Derailleur Nil
Rear Derailleur Shimano Turney TY21 6 Speed
Shifter Shimano SL RS 35 Revo Shifter
Freewheel Falcon FW-610 14-28T
Geometry

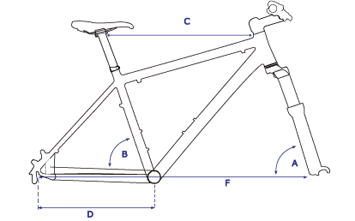

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube. For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops. To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference.. The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
50 cm 71.0° 73.0° 565.8 445 - 1077.7 - - 4710898131125
Download specifications
