XCM500

A true MTB allrounder with a sports geometry which grants agility on al type of offroad tracks.
Equipment
Frame / Saddle / Stem
Frame 27.5" Alu Frame
Seatpost Alloy 27.2 x 350
Saddle DDK D-5255
Handlebar HL MTB Alloy 620 mm 6 Deg.
Stem HL Alloy 90 mm, 10°
Color Anthracite
Suspension / Brakes / Wheels
Fork RST GILA-ML with mech. lockout
Travel 100 mm
Breakes Tektro HD-M275 hydraulic discbrakes
Brake Leaver Tektro HD-M275
Tire DURO , 27.5x2.1 30 TPI
Rim XLM-31 alloy
Front Hub KT-K68F Alloy disc hub
Rear Hub KT-K68R Alloy disc hub
Spokes Stainless
Drive / Circuit
CRC 18" 2752838 / 20" 2752840
Headset FP-H813PL 1 1/8"
Bottom Bracket FN-B902 seal bearing 68x121 mm
Chainwheel Samox Steel/Alloy 42 / 34 / 24
Chain KMC Z8.3
Pedal FP-915
Front Derailleur Shimano FD-TY700
Rear Derailleur Shimano RD-M360
Shifter Shimano SL-M315
Freewheel Shimano CS-HG31-8 11-32
Geometry

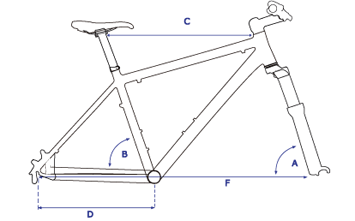

A:head angle B:seat angle C:top tube D:chain stay E:offset F:wheelbase
Gif

When selecting a new bicycle, the correct choice of frame size is a very important safety factor. Most full-sized bicycles come in a range of frame sizes. These sizes usually refer to the distance between the center of the bottom bracket and the top of the frame seat tube.

For safe and comfortable riding, there should be a clearance of between 25 mm and 50 mm beween the crotch of the intended rider and the top tube (horizontal tube below (C), extending from seat post quick release to steering) of the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground.

The ideal clearance will vary between types of bicycles and riders preferences. This makes stradding the frame when off the saddle easier and safer in situations such as in sudden traffic stops.
To assist the wohmen in choosing the correct size, a men's style bicycle could be used for reference..

The diagram should help in mainge the right choice.

Size A B C D E F G H UPC Code
15" 71.00° 72.5° 525 mm 410 mm - 983 mm - - -
20" 70.00° 72.5° 574 mm 430 mm - 1087 mm - - 4710898131002
Download specifications
